welded wire mesh fence panels

Payment Type: L/C,T/T,Western Union
Incoterm: FOB,CIF
Min. Order: 500 Bag/Bags
Delivery Time: 30 Days

Basic Info


Hole Shape: Square

Surface Treatment: Coated

Weave Technique: Other

Material: Metal

Matrial: Q195

Surface: Hot Dip Galvanized/electro Galvanized+PVC

Wire Dia: 4.0; 4.2; 4.5; 4.8; 5.0

Hole Size: 200x50mm; 200x55mm

Standard Size: 2.08x2.5m

Post Size: 60x60x1.5mm

Post Type: Square Post; Peach Post


Additional Info


Productivity: 100000

Brand: bocn

Transportation: Ocean

Place of Origin: Anping County, Hengshui City, Hebei Province

Supply Ability: 100000

Port: Tian Jin Xin Gang


Product Description

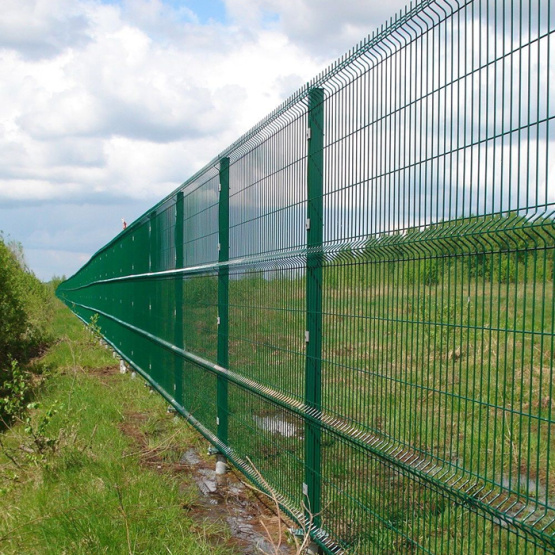

wire mesh fence
wire mesh fence can installation with squre post, DM post, Pech post, round post, fence panel with curves can make more stable ans sronger.
common color: green RAL6005, black RAL9005, white RAL9010
PVC/PE coated surfacetreatment will with variety colors, it will make welded wire mesh fence looks beautifull and anti-rust.
The advantage of Wire mesh fence
1>Simple structure, easy installation and nice appearance,
2>It is an economical version of the panel system
3>Constructed from a welded mesh panel with longitudinal profiles that forms a rigid fence
4>The fence panel is welded with high quality low carbon steel wire, surface treated by electrostatic polyester powder spray coating over galvanized materials.
5>Then connect the fence panel with post by suitable clips
Surface treatment after welded:
1>Powder spray coated (thickness 0.1mm)
2>PVC/PE dipped coating (thickness 0.8-1.2mm)
3>electro galvanized (zinc thickness : 20-60g/m2)
4>Hot dipped galvanized (zinc thickness : 280-500g/m2)

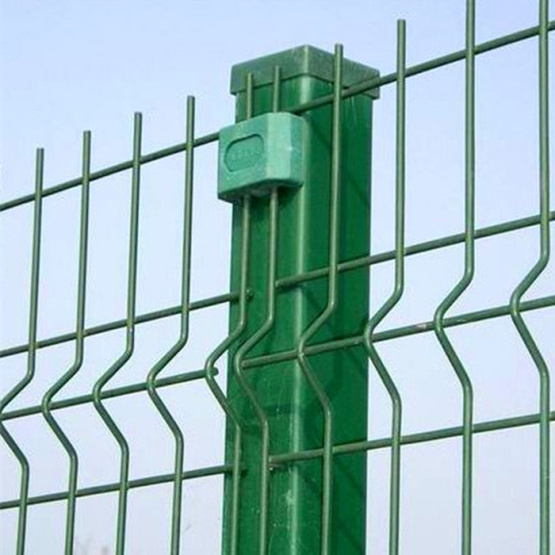

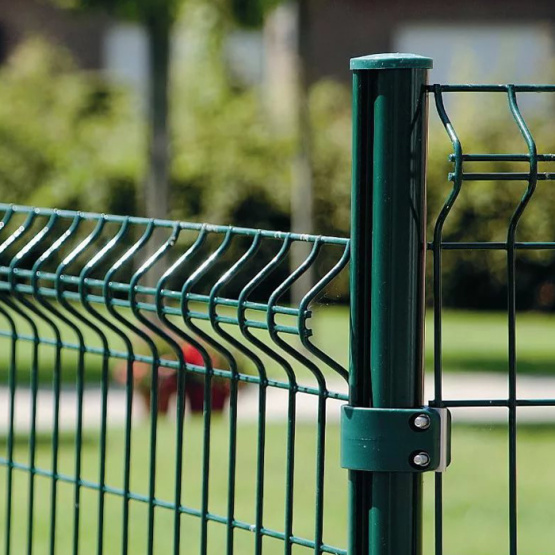

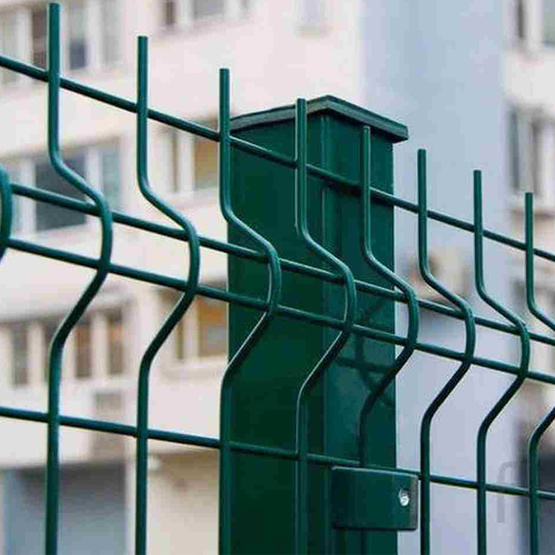

1.Square Post With Welded triangle bending wire mesh fence
Structure: Triangle bending wire mesh fence panel + Square post + Clamp ( plastic M clamp/plastic square clamp/Metal Claw Clamp) + plastic rain hat.
wire Diameter: 3.0mm, 4.0mm, 4.5mm, 5.0mm, 5.5mm, 6.0mm
Mesh size: 50*200mm, 55*200mm, 50*100mm, 75*150mm
Length: 2000mm, 2200mm, 2500mm, 3000mm
Height: 1030mm, 1230mm, 1530mm, 1830mm, 2030mm, 2230mm, 2430mm

Fold number: 2, 3, 4

Panel height

Panel Length

Wire Diameter

Mesh Size

Folds No.

0.6/0.63m

2.5m

Gal + Powder Coated

3.85mm/4.0mm

4.85mm/5.0mm



Gal + PVC Coated

3.0mm/4.0mm

4.0mm/5.0mm



Hot-dipped Gal.

50*200mm

55*200mm

50*150mm

55*100mm

2

1.0/1.03m

2

1.2/1.23m

2

1.5/1.53m

3

1.7/1.73m

3

1.8/1.83m

3/4

1.9/1.93m

3

2.0/2.03m

4

2.4/2.43m

4

3d Fence
Fence Panel

3d Fence Panel 01 11

1.What can I get from bochuan?
We mainly produce wire mesh products, including gabion mesh,perforated sheet,chain link fence,barbed wire,and etc
2.How to choose the right product from bochuan??
Please advise the mesh and wire diameter of gabion mesh you need,as well as the rolls size.
If you have not the detailed specification,please give us your application,then we can recommend the proper gabion mesh accordingly.

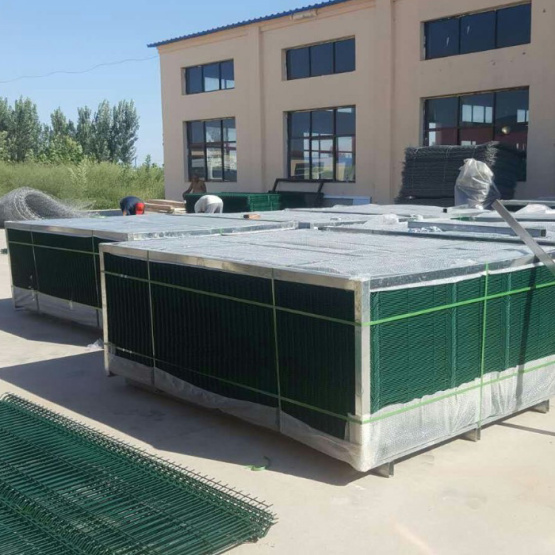

3.What is the package?
A roll coated with waterproof paper in pallet.Custom design are all available.?
4.which countries do you export to?
We currently export to Singapore,Vietnam,USA,Kuwait,Austria and so on.
